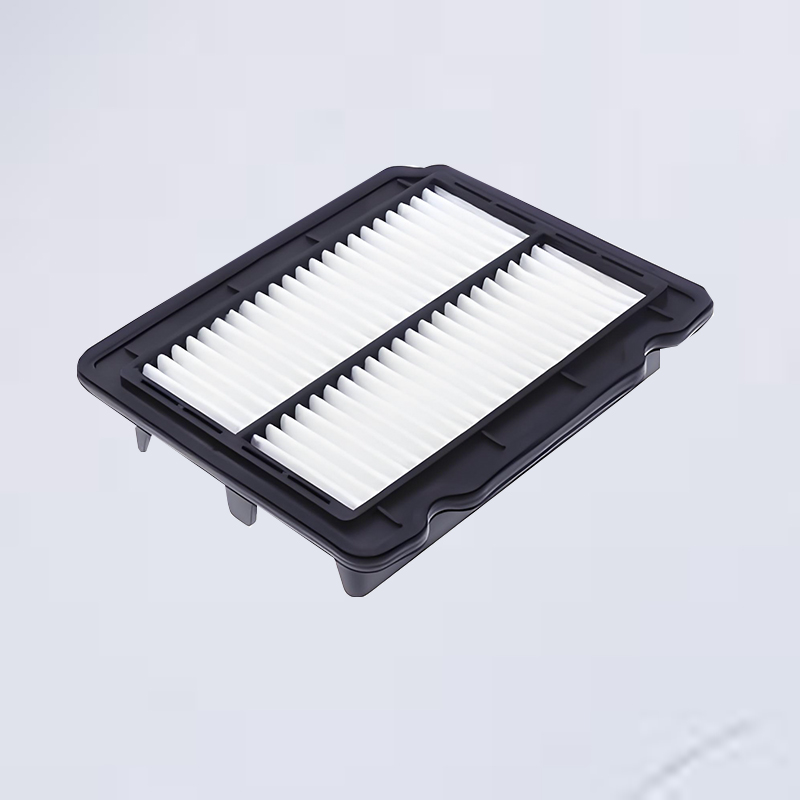

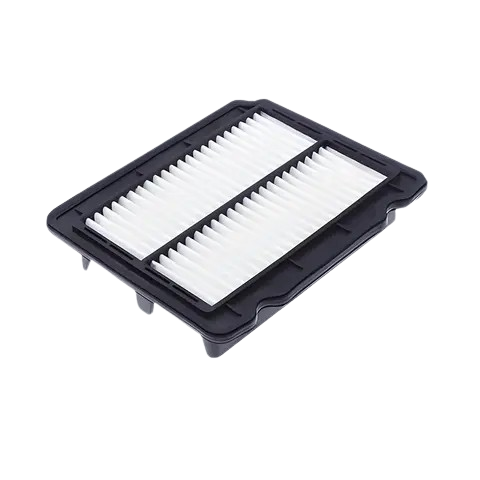

WHY Group Inc.supports OEM OEM Universal Car / Trucks Air Filter High Quality Frome China Manufacturer. Buy OEM Universal Car / Trucks Air Filter High Quality Frome China Manufacturer directly with low price and high quality.
Product Features
1. Outer frame can be made of aluminum frame, galvanized frame, or stainless - steel frame, and the thickness can be customized according to customer requirements.
2. Filter element adopts high-quality activated felt or activated carbon fiber.
3. Excellent deodorization effect, easy to use, long service life of the filter element.
Application Field
Airports,subways,automobiles,electronics factories,nuclear power plants, household and central air-conditioners, hospitals, sewage treatment and other occasions.
Material Composition and Running Condition
Filter element:fiber activated carbon
Frame:aluminum profile/ aluminum sheet/ zinc-coated steel sheet/ cardboard frame
Sealant:White latex/ All-purpose adhesive
Odor adsorption performance:>70%
Optional thicknesses for aluminum profiles (mm): 10,17,21,25,46,50,69,80,90,96
Max.temperature applicable: 80ºC
Max.humidity applicable: Cardboard frame:90%/ Others:100%
Size&Data
| Size (W*H*D) (mm) | Rated airflow (m³/h) | Initial resistance (<=pa) | Filtration area (m²) | Odor adsorption performance(>) |
| 592*592*21 | 1150 | 40 | 0.90 | 70% |
| 287*592*21 | 550 | 40 | 0.47 | 70% |
| 490*592*21 | 970 | 40 | 0.77 | 70% |
| 592*592*46 | 1200 | 40 | 0.97 | 70% |
| 287*592*46 | 650 | 40 | 0.52 | 70% |
| 490*592*46 | 1080 | 40 | 0.86 | 70% |
| 495*295*21 | 504 | 40 | 0.4 | 70% |
| 610*610*46 | 1339 | 40 | 1.06 | 70% |
| 495*495*21 | 840 | 40 | 0.67 | 70% |
| 295*295*46 | 327 | 40 | 0.26 | 70% |
| 495*295*46 | 544 | 40 | 0.43 | 70% |
| 495*495*46 | 907 | 40 | 0.72 | 70% |
| 595*295*46 | 653 | 40 | 0.52 | 70% |
| 595*495*46 | 1089 | 40 | 0.86 | 70% |
| 295*295*10 | 235 | 40 | 0.1 | 70% |
| 495*295*10 | 394 | 40 | 0.16 | 70% |
| 495*495*10 | 662 | 40 | 0.27 | 70% |
Besides the size above, custom size acceptable.
WHY Group Inc.supports OEM OEM Universal Car / Trucks Air Filter High Quality Frome China Manufacturer. Buy OEM Universal Car / Trucks Air Filter High Quality Frome China Manufacturer directly with low price and high quality.
Product Features
1. Outer frame can be made of aluminum frame, galvanized frame, or stainless - steel frame, and the thickness can be customized according to customer requirements.
2. Filter element adopts high-quality activated felt or activated carbon fiber.
3. Excellent deodorization effect, easy to use, long service life of the filter element.
Application Field
Airports,subways,automobiles,electronics factories,nuclear power plants, household and central air-conditioners, hospitals, sewage treatment and other occasions.
Material Composition and Running Condition
Filter element:fiber activated carbon
Frame:aluminum profile/ aluminum sheet/ zinc-coated steel sheet/ cardboard frame
Sealant:White latex/ All-purpose adhesive
Odor adsorption performance:>70%
Optional thicknesses for aluminum profiles (mm): 10,17,21,25,46,50,69,80,90,96
Max.temperature applicable: 80ºC
Max.humidity applicable: Cardboard frame:90%/ Others:100%
Size&Data
| Size (W*H*D) (mm) | Rated airflow (m³/h) | Initial resistance (<=pa) | Filtration area (m²) | Odor adsorption performance(>) |
| 592*592*21 | 1150 | 40 | 0.90 | 70% |
| 287*592*21 | 550 | 40 | 0.47 | 70% |
| 490*592*21 | 970 | 40 | 0.77 | 70% |
| 592*592*46 | 1200 | 40 | 0.97 | 70% |
| 287*592*46 | 650 | 40 | 0.52 | 70% |
| 490*592*46 | 1080 | 40 | 0.86 | 70% |
| 495*295*21 | 504 | 40 | 0.4 | 70% |
| 610*610*46 | 1339 | 40 | 1.06 | 70% |
| 495*495*21 | 840 | 40 | 0.67 | 70% |
| 295*295*46 | 327 | 40 | 0.26 | 70% |
| 495*295*46 | 544 | 40 | 0.43 | 70% |
| 495*495*46 | 907 | 40 | 0.72 | 70% |
| 595*295*46 | 653 | 40 | 0.52 | 70% |
| 595*495*46 | 1089 | 40 | 0.86 | 70% |
| 295*295*10 | 235 | 40 | 0.1 | 70% |
| 495*295*10 | 394 | 40 | 0.16 | 70% |
| 495*495*10 | 662 | 40 | 0.27 | 70% |
Besides the size above, custom size acceptable.
Company Name: WHY Group Inc.
Brand: WYA Tech
Mob / WhatsApp: +1 (514) 585-7511
E-mail: info@wyatech.com / villaw@gmail.com
Add: Qinghe County Industrial Zone, Xingtai City, Hebei Province, China
